Datapoints for nd178 -> n + nd177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.126660e-138 |
| 0.15 | 4.829276e-87 |
| 0.2 | 1.434140e-61 |
| 0.3 | 4.603256e-36 |
| 0.4 | 2.786566e-23 |
| 0.5 | 1.364166e-15 |
| 0.6 | 1.891429e-10 |
| 0.7 | 9.146558e-07 |
| 0.8 | 5.413709e-04 |
| 0.9 | 7.878492e-02 |
| 1 | 4.284647e+00 |
| 1.5 | 7.399795e+05 |
| 2 | 3.114266e+08 |
| 2.5 | 1.105901e+10 |
| 3 | 1.094414e+11 |
| 3.5 | 5.075832e+11 |
| 4 | 1.437712e+12 |
| 4.5 | 2.890215e+12 |
| 5 | 4.522480e+12 |
| 6 | 6.521154e+12 |
| 7 | 5.784901e+12 |
| 8 | 3.691310e+12 |
| 9 | 1.858577e+12 |
| 10 | 7.835177e+11 |

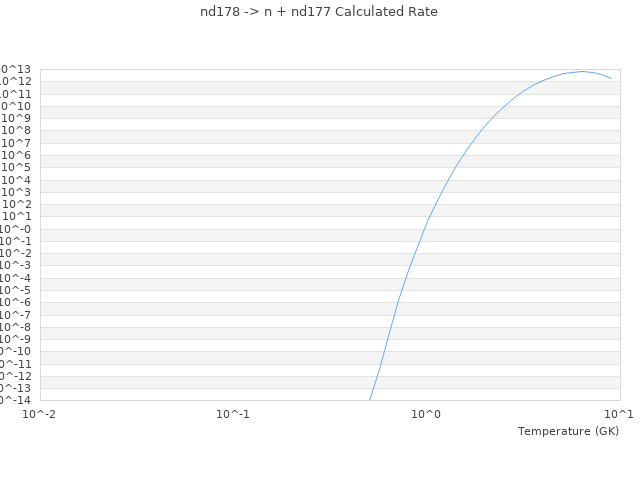

| View Graph | |
