Datapoints for n + nd177 -> nd178
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.215175e+04 |
| 0.15 | 6.709536e+04 |
| 0.2 | 6.491614e+04 |
| 0.3 | 5.689163e+04 |
| 0.4 | 5.009840e+04 |
| 0.5 | 4.511951e+04 |
| 0.6 | 4.145598e+04 |
| 0.7 | 3.867231e+04 |
| 0.8 | 3.647318e+04 |
| 0.9 | 3.466487e+04 |
| 1 | 3.311940e+04 |
| 1.5 | 2.712202e+04 |
| 2 | 2.188194e+04 |
| 2.5 | 1.686952e+04 |
| 3 | 1.235409e+04 |
| 3.5 | 8.607347e+03 |
| 4 | 5.726785e+03 |
| 4.5 | 3.654094e+03 |
| 5 | 2.245233e+03 |
| 6 | 7.681473e+02 |
| 7 | 2.352731e+02 |
| 8 | 6.582661e+01 |
| 9 | 1.709395e+01 |
| 10 | 4.172632e+00 |

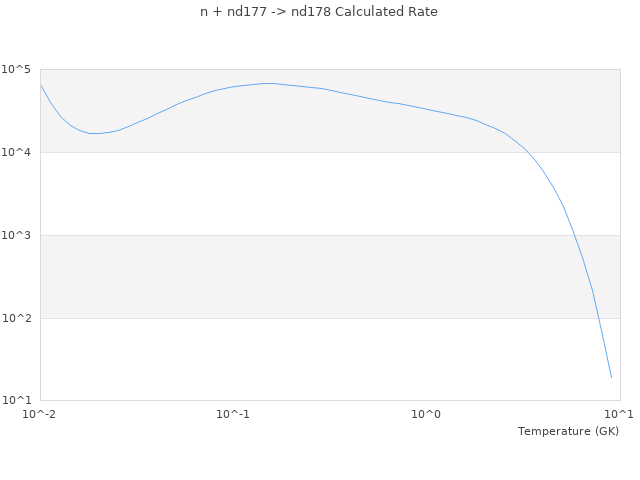

| View Graph | |
