Datapoints for p + nd177 -> pm178
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.018420e-122 |
| 0.15 | 3.683263e-74 |
| 0.2 | 8.766016e-51 |
| 0.3 | 3.366005e-30 |
| 0.4 | 3.213060e-22 |
| 0.5 | 1.260108e-18 |
| 0.6 | 8.164225e-17 |
| 0.7 | 8.786596e-16 |
| 0.8 | 4.241076e-15 |
| 0.9 | 1.447776e-14 |
| 1 | 4.332526e-14 |
| 1.5 | 1.095305e-11 |
| 2 | 3.647860e-09 |
| 2.5 | 6.682700e-07 |
| 3 | 4.265695e-05 |
| 3.5 | 8.719731e-04 |
| 4 | 6.278464e-03 |
| 4.5 | 1.887527e-02 |
| 5 | 2.877356e-02 |
| 6 | 1.881439e-02 |
| 7 | 7.233729e-03 |
| 8 | 5.334977e-03 |
| 9 | 1.970285e-02 |
| 10 | 7.905620e-01 |

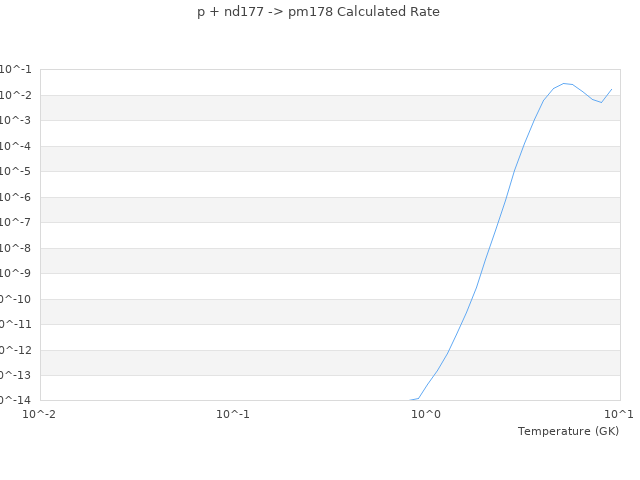

| View Graph | |
