Datapoints for n + sm180 -> he4 + nd177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-311 |
| 0.3 | 1.090318e-210 |
| 0.4 | 2.140115e-158 |
| 0.5 | 1.732654e-126 |
| 0.6 | 4.532903e-105 |
| 0.7 | 9.531247e-90 |
| 0.8 | 2.874014e-78 |
| 0.9 | 2.321281e-69 |
| 1 | 2.964334e-62 |
| 1.5 | 4.866614e-41 |
| 2 | 2.269488e-30 |
| 2.5 | 8.577495e-24 |
| 3 | 3.190796e-19 |
| 3.5 | 8.507570e-16 |
| 4 | 4.257448e-13 |
| 4.5 | 6.748027e-11 |
| 5 | 4.621973e-09 |
| 6 | 3.626420e-06 |
| 7 | 5.360415e-04 |
| 8 | 2.499612e-02 |
| 9 | 5.064268e-01 |
| 10 | 5.553781e+00 |

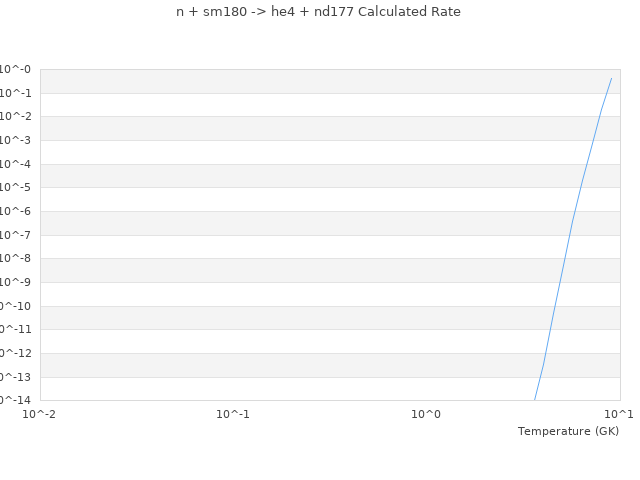

| View Graph | |
