Datapoints for p + nd188 -> pm189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.677057e-125 |
| 0.15 | 7.013210e-76 |
| 0.2 | 4.570094e-52 |
| 0.3 | 4.021038e-31 |
| 0.4 | 5.069763e-23 |
| 0.5 | 2.194887e-19 |
| 0.6 | 1.470141e-17 |
| 0.7 | 1.597280e-16 |
| 0.8 | 7.729618e-16 |
| 0.9 | 2.645749e-15 |
| 1 | 7.961560e-15 |
| 1.5 | 2.179904e-12 |
| 2 | 8.254418e-10 |
| 2.5 | 1.728257e-07 |
| 3 | 1.242655e-05 |
| 3.5 | 2.801436e-04 |
| 4 | 2.176713e-03 |
| 4.5 | 6.924268e-03 |
| 5 | 1.098651e-02 |
| 6 | 7.513817e-03 |
| 7 | 2.949607e-03 |
| 8 | 2.220959e-03 |
| 9 | 8.542917e-03 |
| 10 | 3.702293e-01 |

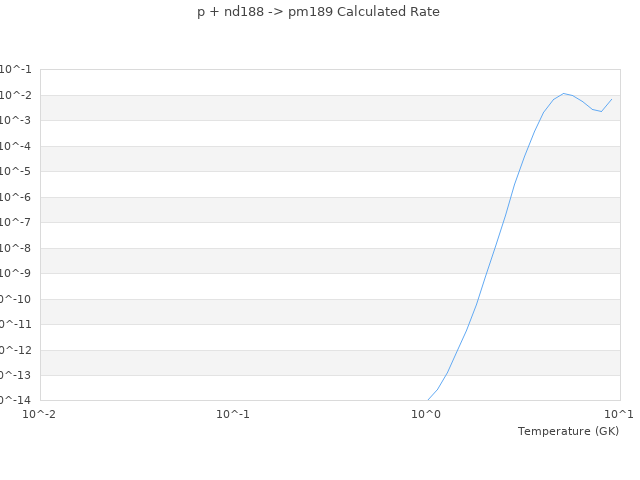

| View Graph | |
