Datapoints for nd190 -> n + nd189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.776256e-25 |
| 0.15 | 5.163050e-13 |
| 0.2 | 4.780671e-07 |
| 0.3 | 4.852472e-01 |
| 0.4 | 5.284020e+02 |
| 0.5 | 3.701117e+04 |
| 0.6 | 6.536087e+05 |
| 0.7 | 5.229376e+06 |
| 0.8 | 2.541990e+07 |
| 0.9 | 8.839401e+07 |
| 1 | 2.425804e+08 |
| 1.5 | 5.434050e+09 |
| 2 | 2.651614e+10 |
| 2.5 | 6.628736e+10 |
| 3 | 1.142428e+11 |
| 3.5 | 1.551675e+11 |
| 4 | 1.782799e+11 |
| 4.5 | 1.806843e+11 |
| 5 | 1.659249e+11 |
| 6 | 1.114095e+11 |
| 7 | 5.929262e+10 |
| 8 | 2.640785e+10 |
| 9 | 1.019059e+10 |
| 10 | 3.489475e+09 |

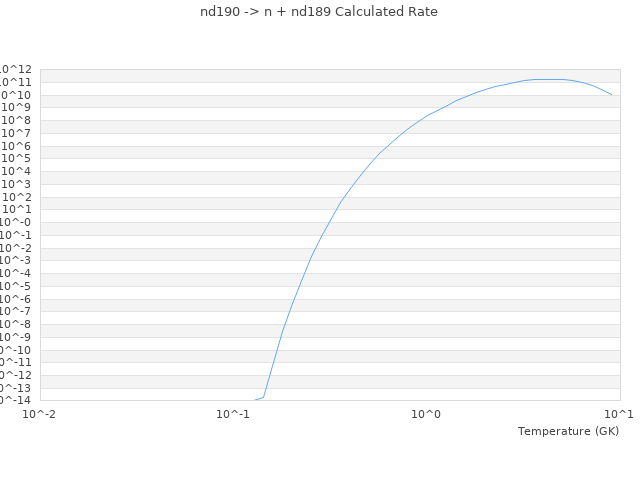

| View Graph | |
