Datapoints for sm194 -> he4 + nd190
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.000616e-259 |
| 0.4 | 3.097074e-194 |
| 0.5 | 2.393226e-154 |
| 0.6 | 1.392040e-127 |
| 0.7 | 1.984314e-108 |
| 0.8 | 4.515699e-94 |
| 0.9 | 6.320103e-83 |
| 1 | 4.969891e-74 |
| 1.5 | 1.738214e-47 |
| 2 | 3.192446e-34 |
| 2.5 | 3.771294e-26 |
| 3 | 1.228088e-20 |
| 3.5 | 1.377684e-16 |
| 4 | 1.823554e-13 |
| 4.5 | 5.570972e-11 |
| 5 | 5.849486e-09 |
| 6 | 6.629534e-06 |
| 7 | 8.908732e-04 |
| 8 | 2.682889e-02 |
| 9 | 2.659387e-01 |
| 10 | 1.121517e+00 |

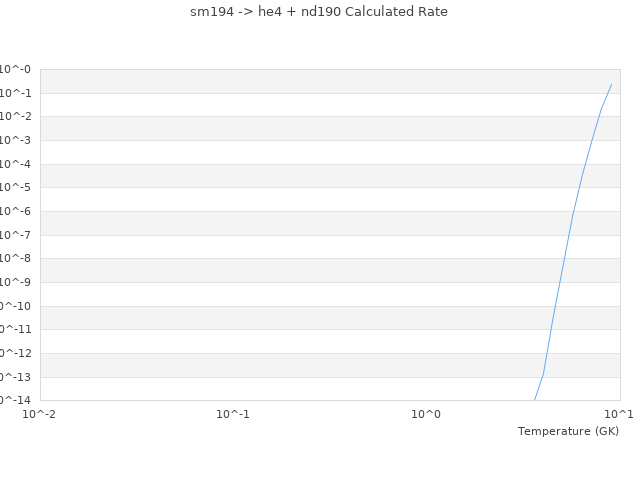

| View Graph | |
