Datapoints for nd192 -> n + nd191
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.874552e-18 |
| 0.15 | 8.266616e-09 |
| 0.2 | 5.735204e-04 |
| 0.3 | 4.377738e+01 |
| 0.4 | 1.344893e+04 |
| 0.5 | 4.556842e+05 |
| 0.6 | 5.109059e+06 |
| 0.7 | 3.030016e+07 |
| 0.8 | 1.201157e+08 |
| 0.9 | 3.624354e+08 |
| 1 | 8.999953e+08 |
| 1.5 | 1.651210e+10 |
| 2 | 7.804693e+10 |
| 2.5 | 1.930177e+11 |
| 3 | 3.244792e+11 |
| 3.5 | 4.209883e+11 |
| 4 | 4.532710e+11 |
| 4.5 | 4.241271e+11 |
| 5 | 3.559760e+11 |
| 6 | 1.972012e+11 |
| 7 | 8.734620e+10 |
| 8 | 3.345507e+10 |
| 9 | 1.168368e+10 |
| 10 | 3.863762e+09 |

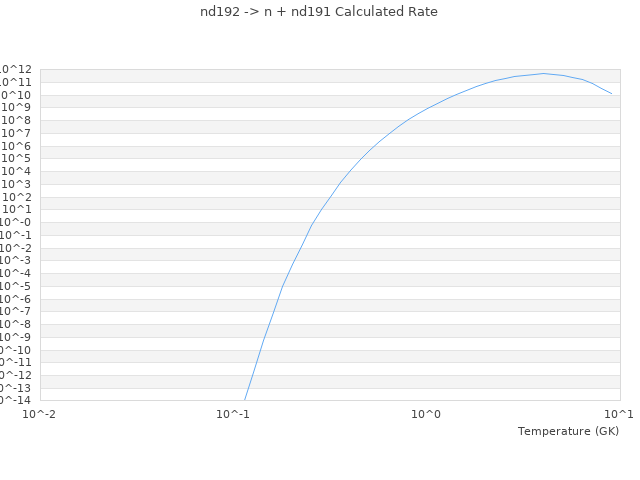

| View Graph | |
