Datapoints for n + nd192 -> nd193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.490092e-67 |
| 0.15 | 1.255811e-41 |
| 0.2 | 2.450465e-30 |
| 0.3 | 5.432590e-20 |
| 0.4 | 4.093678e-15 |
| 0.5 | 3.247570e-12 |
| 0.6 | 2.993093e-10 |
| 0.7 | 8.312605e-09 |
| 0.8 | 1.093492e-07 |
| 0.9 | 8.687435e-07 |
| 1 | 4.810070e-06 |
| 1.5 | 1.149498e-03 |
| 2 | 2.038454e-02 |
| 2.5 | 1.044892e-01 |
| 3 | 2.630745e-01 |
| 3.5 | 4.229831e-01 |
| 4 | 5.036114e-01 |
| 4.5 | 4.861152e-01 |
| 5 | 4.033770e-01 |
| 6 | 2.041733e-01 |
| 7 | 7.930989e-02 |
| 8 | 2.613773e-02 |
| 9 | 7.717990e-03 |
| 10 | 2.104759e-03 |

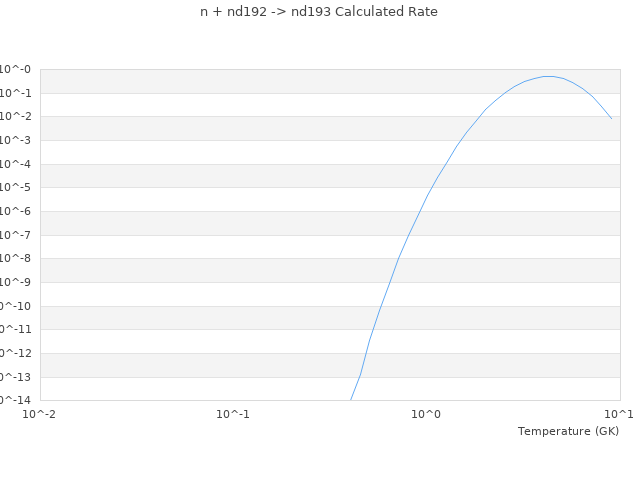

| View Graph | |
