Datapoints for nd193 -> n + nd192
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.059852e-03 |
| 0.15 | 1.164910e+04 |
| 0.2 | 2.353167e+06 |
| 0.3 | 6.444307e+07 |
| 0.4 | 1.938676e+08 |
| 0.5 | 3.807180e+08 |
| 0.6 | 6.752469e+08 |
| 0.7 | 1.156541e+09 |
| 0.8 | 1.934074e+09 |
| 0.9 | 3.154377e+09 |
| 1 | 5.004010e+09 |
| 1.5 | 3.216159e+10 |
| 2 | 1.062432e+11 |
| 2.5 | 2.143355e+11 |
| 3 | 3.047745e+11 |
| 3.5 | 3.377344e+11 |
| 4 | 3.124532e+11 |
| 4.5 | 2.530955e+11 |
| 5 | 1.856070e+11 |
| 6 | 8.094810e+10 |
| 7 | 2.930362e+10 |
| 8 | 9.409670e+09 |
| 9 | 2.780373e+09 |
| 10 | 7.714153e+08 |

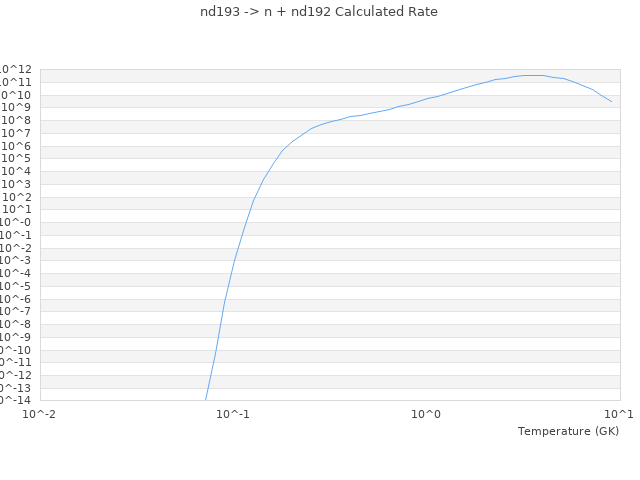

| View Graph | |
