Datapoints for p + nd192 -> pm193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.137752e-125 |
| 0.15 | 6.496470e-76 |
| 0.2 | 5.763178e-52 |
| 0.3 | 6.470820e-31 |
| 0.4 | 8.793107e-23 |
| 0.5 | 3.889640e-19 |
| 0.6 | 2.611404e-17 |
| 0.7 | 2.824067e-16 |
| 0.8 | 1.357195e-15 |
| 0.9 | 4.611529e-15 |
| 1 | 1.377924e-14 |
| 1.5 | 3.660829e-12 |
| 2 | 1.343053e-09 |
| 2.5 | 2.696883e-07 |
| 3 | 1.837871e-05 |
| 3.5 | 3.886342e-04 |
| 4 | 2.810094e-03 |
| 4.5 | 8.275352e-03 |
| 5 | 1.212327e-02 |
| 6 | 7.077069e-03 |
| 7 | 2.405724e-03 |
| 8 | 1.610953e-03 |
| 9 | 5.713227e-03 |
| 10 | 2.384145e-01 |

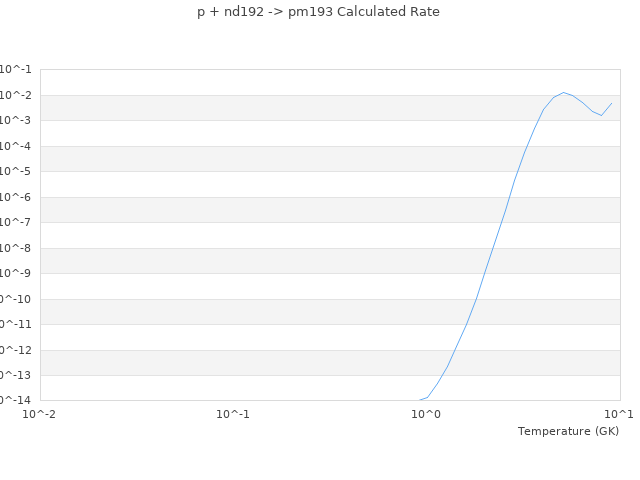

| View Graph | |
