Datapoints for nd194 -> n + nd193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.002447e-19 |
| 0.15 | 1.380353e-09 |
| 0.2 | 1.658297e-04 |
| 0.3 | 2.093803e+01 |
| 0.4 | 7.948775e+03 |
| 0.5 | 2.984240e+05 |
| 0.6 | 3.530901e+06 |
| 0.7 | 2.158003e+07 |
| 0.8 | 8.711910e+07 |
| 0.9 | 2.661683e+08 |
| 1 | 6.676238e+08 |
| 1.5 | 1.297310e+10 |
| 2 | 6.735330e+10 |
| 2.5 | 1.885873e+11 |
| 3 | 3.652706e+11 |
| 3.5 | 5.498250e+11 |
| 4 | 6.861140e+11 |
| 4.5 | 7.389142e+11 |
| 5 | 7.056830e+11 |
| 6 | 4.828142e+11 |
| 7 | 2.443560e+11 |
| 8 | 9.777922e+10 |
| 9 | 3.237490e+10 |
| 10 | 9.166919e+09 |

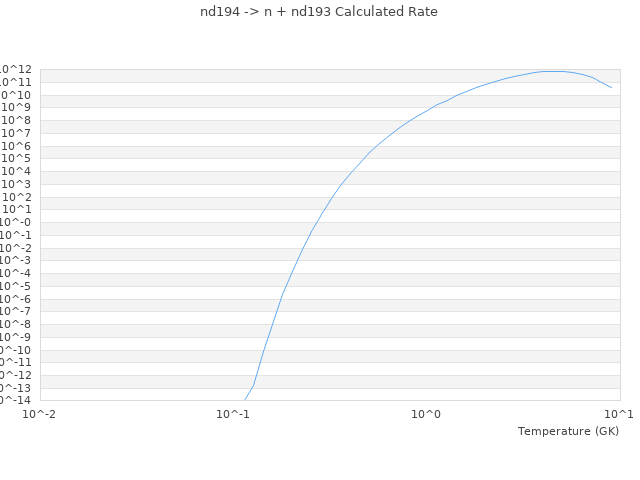

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
