Datapoints for n + nd193 -> nd194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.205685e+00 |
| 0.15 | 9.873924e+00 |
| 0.2 | 9.216681e+00 |
| 0.3 | 7.577608e+00 |
| 0.4 | 6.462474e+00 |
| 0.5 | 5.793134e+00 |
| 0.6 | 5.404527e+00 |
| 0.7 | 5.192011e+00 |
| 0.8 | 5.093692e+00 |
| 0.9 | 5.071836e+00 |
| 1 | 5.102220e+00 |
| 1.5 | 5.593689e+00 |
| 2 | 6.072780e+00 |
| 2.5 | 6.163756e+00 |
| 3 | 5.771498e+00 |
| 3.5 | 4.987059e+00 |
| 4 | 3.995334e+00 |
| 4.5 | 2.985284e+00 |
| 5 | 2.092840e+00 |
| 6 | 8.683424e-01 |
| 7 | 2.966176e-01 |
| 8 | 8.603892e-02 |
| 9 | 2.172250e-02 |
| 10 | 4.869384e-03 |

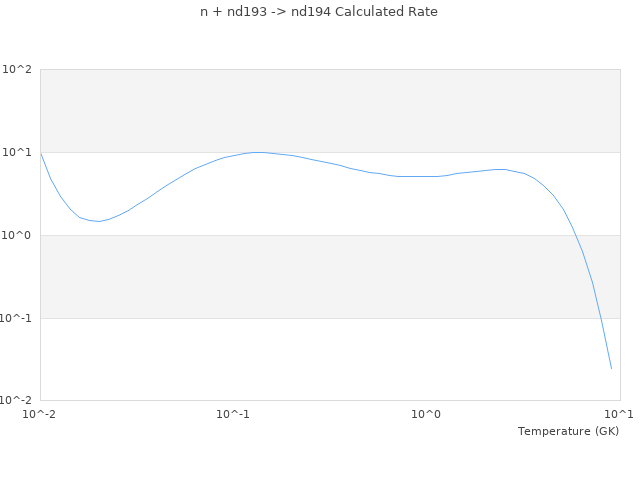

| View Graph | |
