Datapoints for p + nd193 -> pm194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.396334e-125 |
| 0.15 | 1.133070e-75 |
| 0.2 | 1.100441e-51 |
| 0.3 | 1.283078e-30 |
| 0.4 | 1.688275e-22 |
| 0.5 | 7.071716e-19 |
| 0.6 | 4.467038e-17 |
| 0.7 | 4.544347e-16 |
| 0.8 | 2.059403e-15 |
| 0.9 | 6.621601e-15 |
| 1 | 1.879484e-14 |
| 1.5 | 4.081371e-12 |
| 2 | 1.316345e-09 |
| 2.5 | 2.442721e-07 |
| 3 | 1.592264e-05 |
| 3.5 | 3.299182e-04 |
| 4 | 2.377676e-03 |
| 4.5 | 7.063124e-03 |
| 5 | 1.052479e-02 |
| 6 | 6.448568e-03 |
| 7 | 2.317101e-03 |
| 8 | 1.635593e-03 |
| 9 | 6.058168e-03 |
| 10 | 2.604268e-01 |

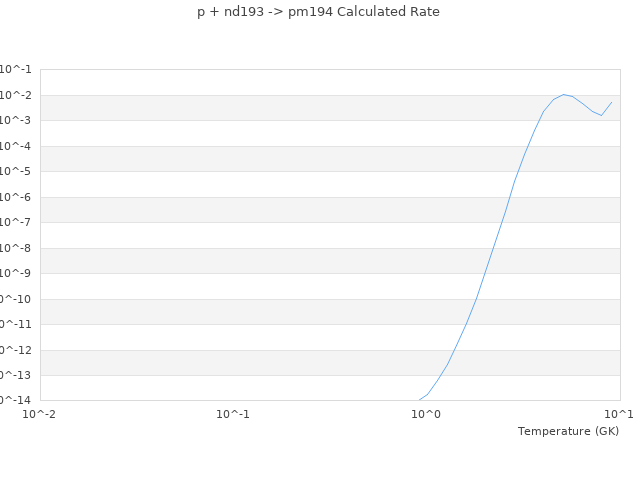

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
