Datapoints for p + nd193 -> n + pm193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.214430e-64 |
| 0.15 | 2.225478e-41 |
| 0.2 | 2.293076e-30 |
| 0.3 | 1.920805e-20 |
| 0.4 | 3.861427e-16 |
| 0.5 | 8.817084e-14 |
| 0.6 | 3.044691e-12 |
| 0.7 | 4.259912e-11 |
| 0.8 | 3.703457e-10 |
| 0.9 | 2.448789e-09 |
| 1 | 1.362828e-08 |
| 1.5 | 1.829999e-05 |
| 2 | 5.374076e-03 |
| 2.5 | 4.456756e-01 |
| 3 | 1.237791e+01 |
| 3.5 | 1.387686e+02 |
| 4 | 7.544898e+02 |
| 4.5 | 2.353865e+03 |
| 5 | 4.891618e+03 |
| 6 | 1.033771e+04 |
| 7 | 1.666943e+04 |
| 8 | 3.901433e+04 |
| 9 | 2.165820e+05 |
| 10 | 4.170142e+06 |

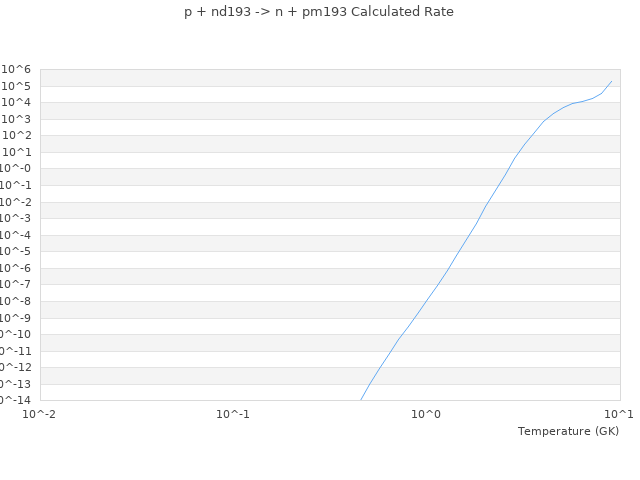

| View Graph | |
