Datapoints for nd196 -> n + nd195
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.331756e-33 |
| 0.15 | 2.300065e-18 |
| 0.2 | 6.047161e-11 |
| 0.3 | 1.610249e-03 |
| 0.4 | 8.608968e+00 |
| 0.5 | 1.548178e+03 |
| 0.6 | 5.130126e+04 |
| 0.7 | 6.472914e+05 |
| 0.8 | 4.463873e+06 |
| 0.9 | 2.055224e+07 |
| 1 | 7.120723e+07 |
| 1.5 | 3.509233e+09 |
| 2 | 2.811305e+10 |
| 2.5 | 1.007322e+11 |
| 3 | 2.286914e+11 |
| 3.5 | 3.849114e+11 |
| 4 | 5.222870e+11 |
| 4.5 | 6.007817e+11 |
| 5 | 6.053531e+11 |
| 6 | 4.496602e+11 |
| 7 | 2.413543e+11 |
| 8 | 1.006017e+11 |
| 9 | 3.415558e+10 |
| 10 | 9.770386e+09 |

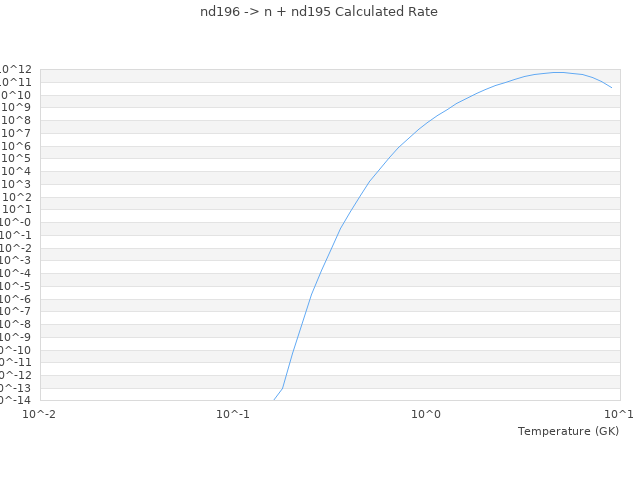

| View Graph | |
