Datapoints for nd197 -> n + nd196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.585797e+02 |
| 0.15 | 1.205832e+06 |
| 0.2 | 1.110346e+07 |
| 0.3 | 5.377819e+07 |
| 0.4 | 1.280561e+08 |
| 0.5 | 2.685569e+08 |
| 0.6 | 5.296138e+08 |
| 0.7 | 9.863257e+08 |
| 0.8 | 1.733809e+09 |
| 0.9 | 2.881311e+09 |
| 1 | 4.542221e+09 |
| 1.5 | 2.337277e+10 |
| 2 | 5.857663e+10 |
| 2.5 | 9.709099e+10 |
| 3 | 1.253592e+11 |
| 3.5 | 1.376419e+11 |
| 4 | 1.347955e+11 |
| 4.5 | 1.208300e+11 |
| 5 | 1.004971e+11 |
| 6 | 5.675263e+10 |
| 7 | 2.454833e+10 |
| 8 | 8.009045e+09 |
| 9 | 1.924964e+09 |
| 10 | 3.325066e+08 |

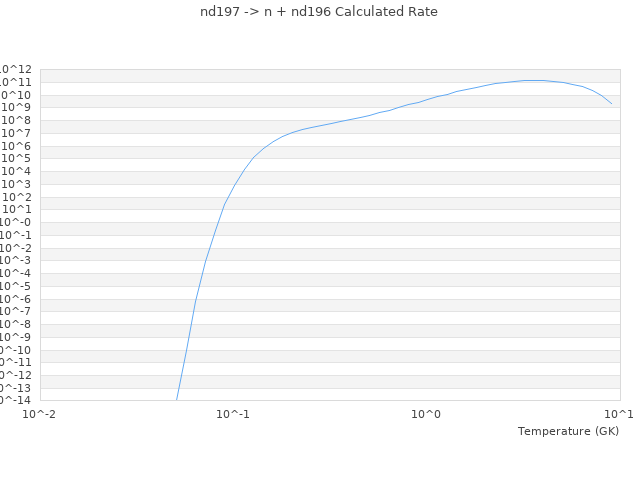

| View Graph | |
