Datapoints for n + pm196 -> p + nd196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-322 |
| 0.4 | 6.425534e-243 |
| 0.5 | 2.277216e-195 |
| 0.6 | 1.068037e-163 |
| 0.7 | 5.025136e-141 |
| 0.8 | 6.124862e-124 |
| 0.9 | 1.468510e-110 |
| 1 | 9.125543e-100 |
| 1.5 | 1.697332e-66 |
| 2 | 5.768771e-49 |
| 2.5 | 5.142204e-38 |
| 3 | 1.482194e-30 |
| 3.5 | 3.271719e-25 |
| 4 | 2.945560e-21 |
| 4.5 | 2.926561e-18 |
| 5 | 6.117690e-16 |
| 6 | 1.310991e-12 |
| 7 | 2.999358e-10 |
| 8 | 2.925908e-08 |
| 9 | 2.999723e-06 |
| 10 | 6.043640e-04 |

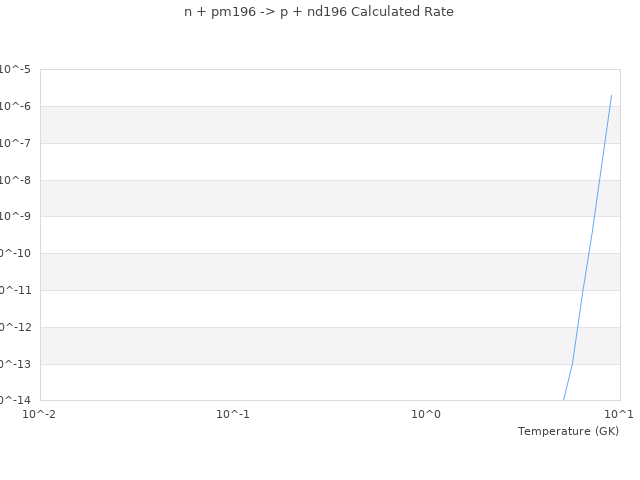

| View Graph | |
