Datapoints for p + nd196 -> he4 + pr193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.571175e-210 |
| 0.15 | 4.868817e-141 |
| 0.2 | 6.232597e-104 |
| 0.3 | 9.629045e-67 |
| 0.4 | 2.369331e-49 |
| 0.5 | 6.250838e-40 |
| 0.6 | 2.543764e-34 |
| 0.7 | 9.767416e-31 |
| 0.8 | 2.626092e-28 |
| 0.9 | 1.433418e-26 |
| 1 | 2.899418e-25 |
| 1.5 | 1.989290e-21 |
| 2 | 6.308130e-19 |
| 2.5 | 9.364690e-17 |
| 3 | 8.500304e-15 |
| 3.5 | 4.705094e-13 |
| 4 | 1.573300e-11 |
| 4.5 | 3.233946e-10 |
| 5 | 4.250953e-09 |
| 6 | 2.388962e-07 |
| 7 | 4.502122e-06 |
| 8 | 4.592139e-05 |
| 9 | 3.918052e-04 |
| 10 | 4.093352e-03 |

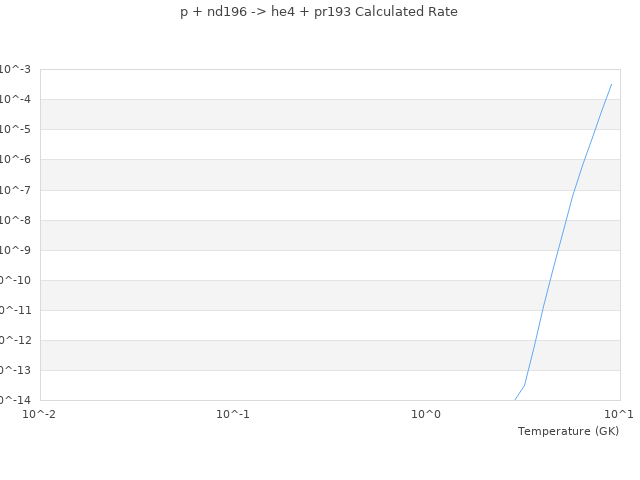

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
