Datapoints for n + nd197 -> nd198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.099127e+01 |
| 0.15 | 1.086742e+01 |
| 0.2 | 9.696438e+00 |
| 0.3 | 7.695653e+00 |
| 0.4 | 6.559920e+00 |
| 0.5 | 5.967214e+00 |
| 0.6 | 5.687409e+00 |
| 0.7 | 5.597360e+00 |
| 0.8 | 5.629336e+00 |
| 0.9 | 5.743318e+00 |
| 1 | 5.913690e+00 |
| 1.5 | 7.115594e+00 |
| 2 | 8.159097e+00 |
| 2.5 | 8.486117e+00 |
| 3 | 7.964777e+00 |
| 3.5 | 6.791160e+00 |
| 4 | 5.311001e+00 |
| 4.5 | 3.846475e+00 |
| 5 | 2.602888e+00 |
| 6 | 1.002373e+00 |
| 7 | 3.195212e-01 |
| 8 | 8.773891e-02 |
| 9 | 2.140546e-02 |
| 10 | 4.753902e-03 |

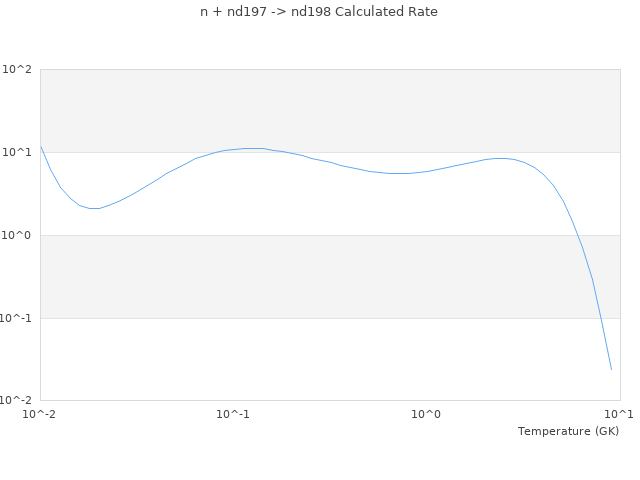

| View Graph | |
