Datapoints for p + nd197 -> n + pm197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.129483e-64 |
| 0.15 | 2.586215e-41 |
| 0.2 | 2.921066e-30 |
| 0.3 | 2.603689e-20 |
| 0.4 | 5.279474e-16 |
| 0.5 | 1.195361e-13 |
| 0.6 | 4.067801e-12 |
| 0.7 | 5.596657e-11 |
| 0.8 | 4.782514e-10 |
| 0.9 | 3.109291e-09 |
| 1 | 1.702554e-08 |
| 1.5 | 2.134287e-05 |
| 2 | 5.959053e-03 |
| 2.5 | 4.761667e-01 |
| 3 | 1.286765e+01 |
| 3.5 | 1.414096e+02 |
| 4 | 7.580756e+02 |
| 4.5 | 2.342966e+03 |
| 5 | 4.842482e+03 |
| 6 | 1.021977e+04 |
| 7 | 1.662421e+04 |
| 8 | 3.956772e+04 |
| 9 | 2.248647e+05 |
| 10 | 4.457474e+06 |

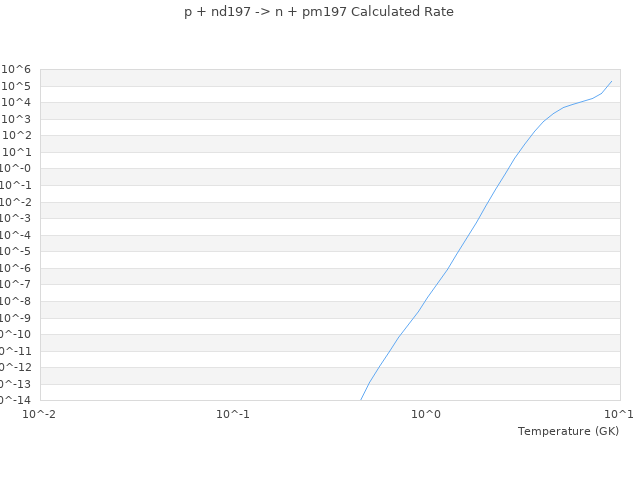

| View Graph | |
