Datapoints for n + sm200 -> he4 + nd197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-322 |
| 0.4 | 4.887872e-239 |
| 0.5 | 4.058011e-189 |
| 0.6 | 4.663801e-156 |
| 0.7 | 1.106440e-132 |
| 0.8 | 2.356499e-115 |
| 0.9 | 4.905576e-102 |
| 1 | 1.678966e-91 |
| 1.5 | 1.256888e-60 |
| 2 | 1.829552e-45 |
| 2.5 | 3.264503e-36 |
| 3 | 8.495198e-30 |
| 3.5 | 5.600281e-25 |
| 4 | 3.614379e-21 |
| 4.5 | 4.690357e-18 |
| 5 | 1.862770e-15 |
| 6 | 2.224143e-11 |
| 7 | 2.188556e-08 |
| 8 | 3.511868e-06 |
| 9 | 1.412311e-04 |
| 10 | 1.924322e-03 |

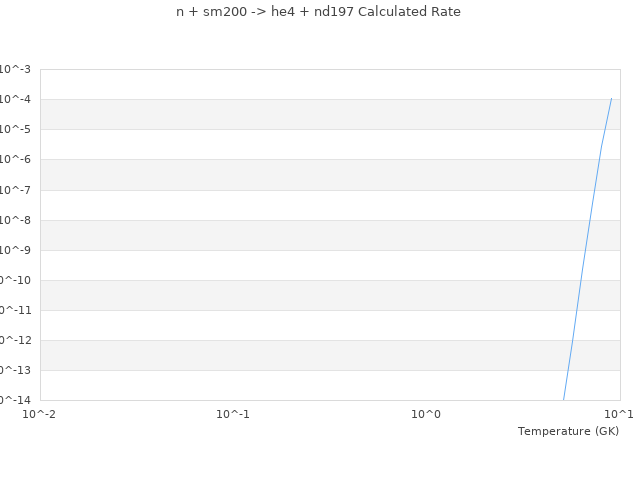

| View Graph | |
