Datapoints for nd199 -> n + nd198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.051337e-04 |
| 0.15 | 7.863371e+03 |
| 0.2 | 2.117121e+06 |
| 0.3 | 7.934876e+07 |
| 0.4 | 2.555891e+08 |
| 0.5 | 4.797882e+08 |
| 0.6 | 7.751721e+08 |
| 0.7 | 1.188605e+09 |
| 0.8 | 1.774967e+09 |
| 0.9 | 2.597159e+09 |
| 1 | 3.726167e+09 |
| 1.5 | 1.669520e+10 |
| 2 | 4.671119e+10 |
| 2.5 | 9.027533e+10 |
| 3 | 1.322092e+11 |
| 3.5 | 1.570474e+11 |
| 4 | 1.587428e+11 |
| 4.5 | 1.412328e+11 |
| 5 | 1.133010e+11 |
| 6 | 5.705552e+10 |
| 7 | 2.221225e+10 |
| 8 | 7.035249e+09 |
| 9 | 1.866870e+09 |
| 10 | 4.222391e+08 |

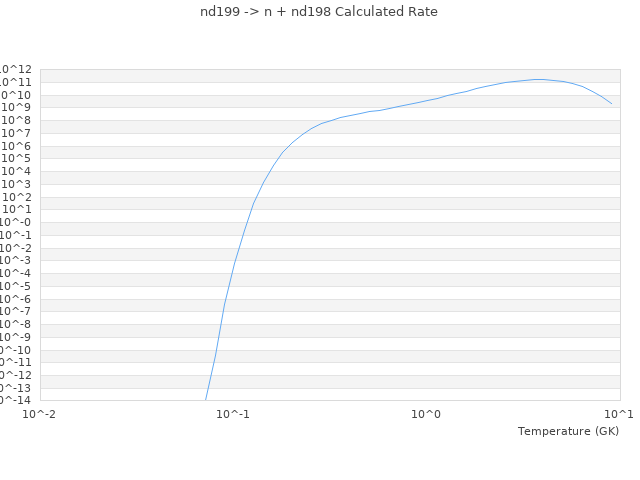

| View Graph | |
