Datapoints for p + nd200 -> n + pm200
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.704056e-44 |
| 0.15 | 1.861354e-31 |
| 0.2 | 2.695715e-25 |
| 0.3 | 4.772470e-19 |
| 0.4 | 1.125248e-15 |
| 0.5 | 2.012577e-13 |
| 0.6 | 9.740773e-12 |
| 0.7 | 2.166498e-10 |
| 0.8 | 2.880164e-09 |
| 0.9 | 2.652260e-08 |
| 1 | 1.852139e-07 |
| 1.5 | 2.336008e-04 |
| 2 | 2.559730e-02 |
| 2.5 | 7.358947e-01 |
| 3 | 9.066231e+00 |
| 3.5 | 6.272105e+01 |
| 4 | 2.881386e+02 |
| 4.5 | 9.833808e+02 |
| 5 | 2.698631e+03 |
| 6 | 1.313856e+04 |
| 7 | 4.571013e+04 |
| 8 | 1.382827e+05 |
| 9 | 4.138415e+05 |
| 10 | 1.338892e+06 |

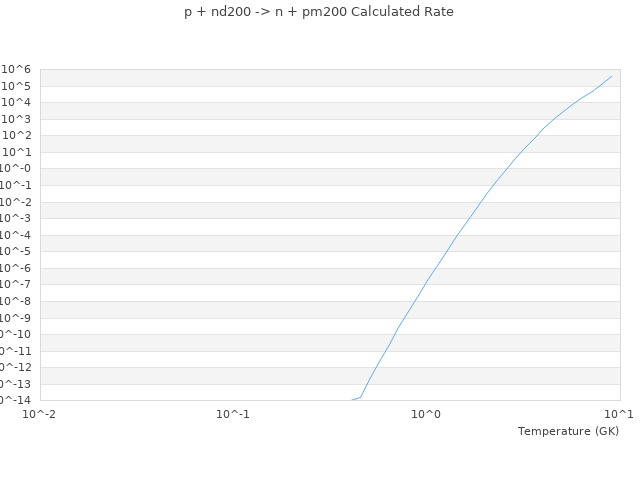

| View Graph | |
