Datapoints for he4 + nd200 -> sm204
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-310 |
| 0.15 | 1.276365e-225 |
| 0.2 | 7.512167e-177 |
| 0.3 | 6.417356e-123 |
| 0.4 | 6.587957e-94 |
| 0.5 | 5.995876e-76 |
| 0.6 | 7.698283e-64 |
| 0.7 | 3.477475e-55 |
| 0.8 | 9.985921e-49 |
| 0.9 | 9.588719e-44 |
| 1 | 8.516725e-40 |
| 1.5 | 3.210105e-28 |
| 2 | 1.523758e-22 |
| 2.5 | 4.564882e-19 |
| 3 | 1.236241e-16 |
| 3.5 | 8.671234e-15 |
| 4 | 2.559384e-13 |
| 4.5 | 4.085506e-12 |
| 5 | 4.067364e-11 |
| 6 | 1.349392e-09 |
| 7 | 1.419320e-08 |
| 8 | 5.944676e-08 |
| 9 | 1.152591e-07 |
| 10 | 1.157588e-07 |

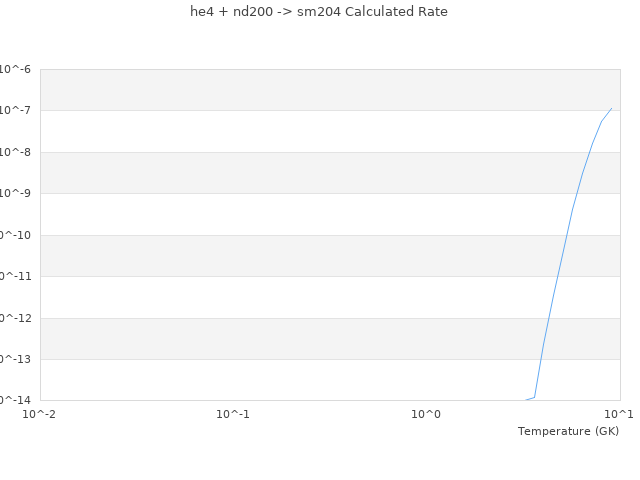

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
