Datapoints for he4 + nd133 -> p + pm136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.821230e-275 |
| 0.2 | 3.751189e-203 |
| 0.3 | 2.457277e-133 |
| 0.4 | 2.465065e-100 |
| 0.5 | 1.739220e-81 |
| 0.6 | 2.356216e-69 |
| 0.7 | 7.470851e-61 |
| 0.8 | 1.677939e-54 |
| 0.9 | 1.629813e-49 |
| 1 | 1.924946e-45 |
| 1.5 | 4.902034e-32 |
| 2 | 7.497941e-24 |
| 2.5 | 4.185401e-18 |
| 3 | 6.557737e-14 |
| 3.5 | 7.861891e-11 |
| 4 | 1.370213e-08 |
| 4.5 | 5.568172e-07 |
| 5 | 7.663740e-06 |
| 6 | 1.828328e-04 |
| 7 | 1.270411e-03 |
| 8 | 1.056082e-02 |
| 9 | 3.067867e-01 |
| 10 | 7.148737e+01 |

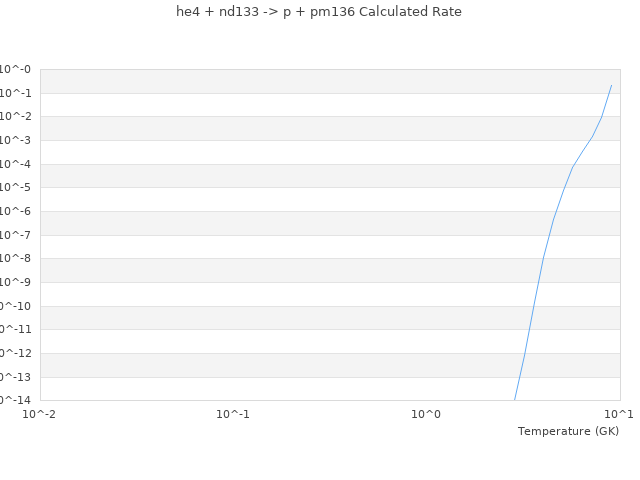

| View Graph | |
