Datapoints for p + pm147 -> he4 + nd144
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.556349e-117 |
| 0.15 | 3.531467e-72 |
| 0.2 | 3.825938e-50 |
| 0.3 | 1.751468e-30 |
| 0.4 | 1.167161e-22 |
| 0.5 | 5.251226e-19 |
| 0.6 | 4.456633e-17 |
| 0.7 | 6.360044e-16 |
| 0.8 | 3.957823e-15 |
| 0.9 | 1.674985e-14 |
| 1 | 5.975779e-14 |
| 1.5 | 2.386848e-11 |
| 2 | 9.105628e-09 |
| 2.5 | 1.844946e-06 |
| 3 | 1.403177e-04 |
| 3.5 | 3.805429e-03 |
| 4 | 4.051113e-02 |
| 4.5 | 1.981529e-01 |
| 5 | 5.313155e-01 |
| 6 | 1.258883e+00 |
| 7 | 1.922951e+00 |
| 8 | 5.460909e+00 |
| 9 | 6.802619e+01 |
| 10 | 7.429075e+03 |

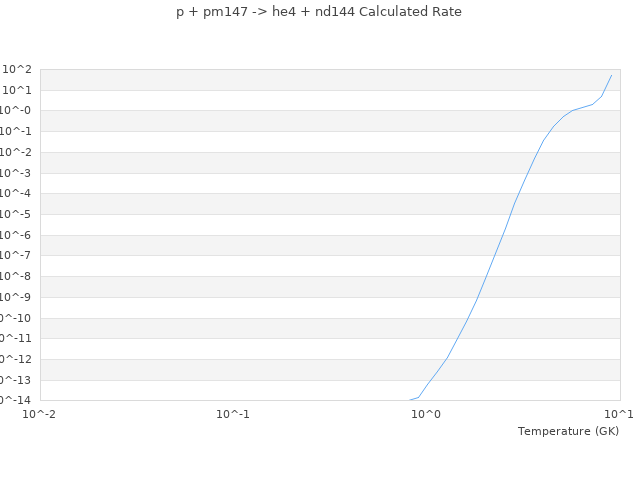

| View Graph | |
