Datapoints for he4 + nd163 -> p + pm166
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-309 |
| 0.3 | 6.494138e-202 |
| 0.4 | 6.997071e-151 |
| 0.5 | 1.092571e-121 |
| 0.6 | 5.416163e-103 |
| 0.7 | 4.927577e-90 |
| 0.8 | 1.688950e-80 |
| 0.9 | 3.798418e-73 |
| 1 | 2.920878e-67 |
| 1.5 | 7.620999e-49 |
| 2 | 2.674556e-38 |
| 2.5 | 4.783440e-31 |
| 3 | 1.031228e-25 |
| 3.5 | 1.077078e-21 |
| 4 | 1.211305e-18 |
| 4.5 | 2.527733e-16 |
| 5 | 1.475549e-14 |
| 6 | 3.866767e-12 |
| 7 | 1.660652e-10 |
| 8 | 5.159283e-09 |
| 9 | 3.593653e-07 |
| 10 | 1.357576e-04 |

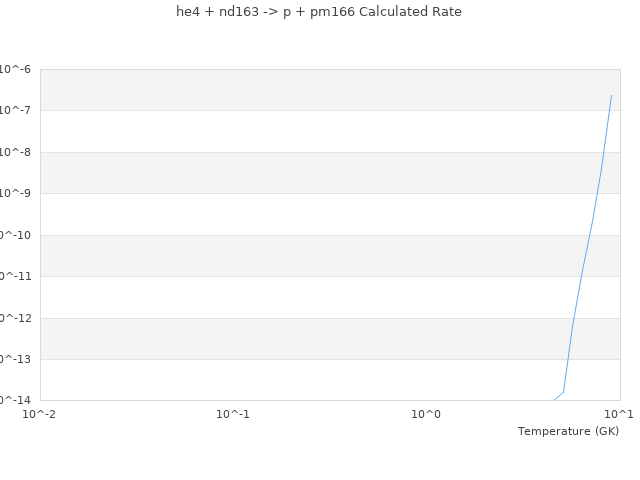

| View Graph | |
