Datapoints for he4 + nd167 -> p + pm170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-309 |
| 0.3 | 2.084057e-202 |
| 0.4 | 1.818180e-151 |
| 0.5 | 2.447217e-122 |
| 0.6 | 1.089687e-103 |
| 0.7 | 9.170355e-91 |
| 0.8 | 2.971502e-81 |
| 0.9 | 6.423340e-74 |
| 1 | 4.808690e-68 |
| 1.5 | 1.230065e-49 |
| 2 | 4.619343e-39 |
| 2.5 | 9.070598e-32 |
| 3 | 2.152647e-26 |
| 3.5 | 2.459449e-22 |
| 4 | 2.996982e-19 |
| 4.5 | 6.708239e-17 |
| 5 | 4.160427e-15 |
| 6 | 1.201573e-12 |
| 7 | 5.558156e-11 |
| 8 | 1.836639e-09 |
| 9 | 1.355905e-07 |
| 10 | 5.451641e-05 |

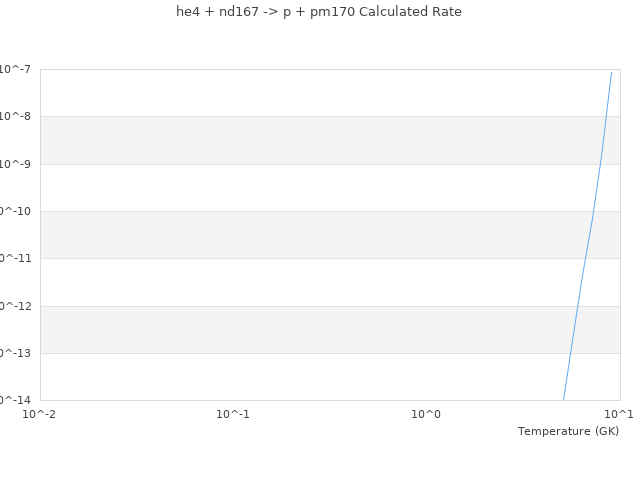

| View Graph | |
