Datapoints for he4 + nd168 -> p + pm171
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-315 |
| 0.3 | 4.992479e-206 |
| 0.4 | 4.636885e-154 |
| 0.5 | 2.673252e-124 |
| 0.6 | 3.186689e-105 |
| 0.7 | 5.450682e-92 |
| 0.8 | 3.011873e-82 |
| 0.9 | 9.860710e-75 |
| 1 | 1.028272e-68 |
| 1.5 | 7.059689e-50 |
| 2 | 4.370298e-39 |
| 2.5 | 1.185805e-31 |
| 3 | 3.600000e-26 |
| 3.5 | 5.059826e-22 |
| 4 | 7.408880e-19 |
| 4.5 | 1.958763e-16 |
| 5 | 1.413361e-14 |
| 6 | 5.277710e-12 |
| 7 | 2.948094e-10 |
| 8 | 1.086962e-08 |
| 9 | 8.189496e-07 |
| 10 | 3.047190e-04 |

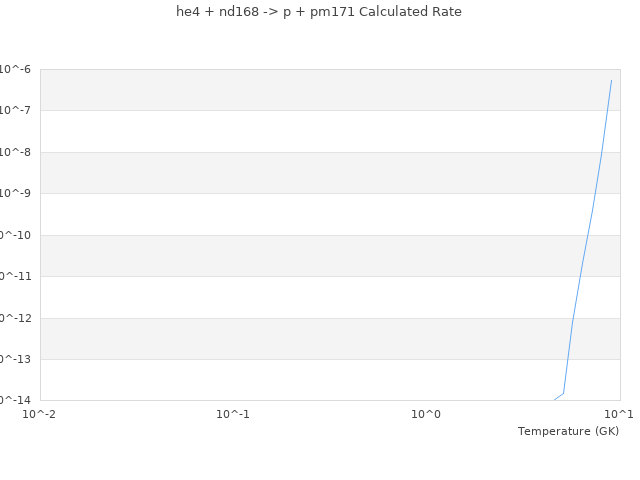

| View Graph | |
