Datapoints for he4 + nd172 -> p + pm175
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-318 |
| 0.3 | 9.628102e-208 |
| 0.4 | 7.862123e-155 |
| 0.5 | 1.820144e-124 |
| 0.6 | 5.084079e-105 |
| 0.7 | 1.418983e-91 |
| 0.8 | 1.001978e-81 |
| 0.9 | 3.549619e-74 |
| 1 | 3.575533e-68 |
| 1.5 | 9.831156e-50 |
| 2 | 2.005966e-39 |
| 2.5 | 2.296670e-32 |
| 3 | 3.991366e-27 |
| 3.5 | 4.199486e-23 |
| 4 | 5.679690e-20 |
| 4.5 | 1.614371e-17 |
| 5 | 1.383067e-15 |
| 6 | 8.226337e-13 |
| 7 | 6.829579e-11 |
| 8 | 2.825546e-09 |
| 9 | 1.543314e-07 |
| 10 | 2.394143e-05 |

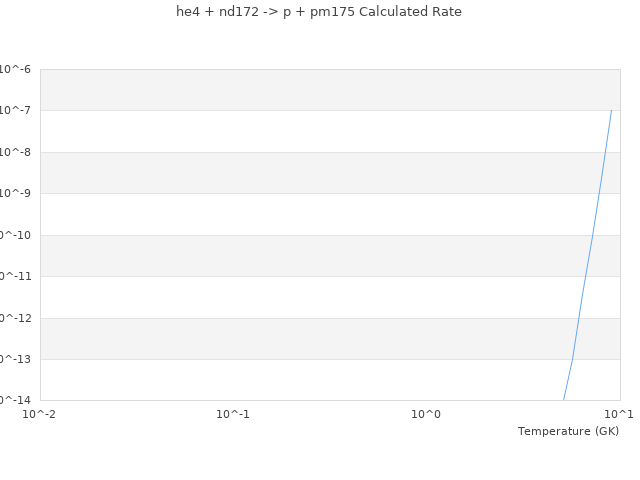

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
