Datapoints for n + pm176 -> pm177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.835795e+06 |
| 0.15 | 1.951823e+06 |
| 0.2 | 1.848727e+06 |
| 0.3 | 1.504953e+06 |
| 0.4 | 1.199691e+06 |
| 0.5 | 9.677680e+05 |
| 0.6 | 7.945628e+05 |
| 0.7 | 6.636343e+05 |
| 0.8 | 5.627645e+05 |
| 0.9 | 4.835073e+05 |
| 1 | 4.200704e+05 |
| 1.5 | 2.338559e+05 |
| 2 | 1.460100e+05 |
| 2.5 | 9.620288e+04 |
| 3 | 6.487649e+04 |
| 3.5 | 4.402483e+04 |
| 4 | 2.975808e+04 |
| 4.5 | 1.990808e+04 |
| 5 | 1.312669e+04 |
| 6 | 5.407895e+03 |
| 7 | 2.053105e+03 |
| 8 | 7.137956e+02 |
| 9 | 2.266262e+02 |
| 10 | 6.564731e+01 |

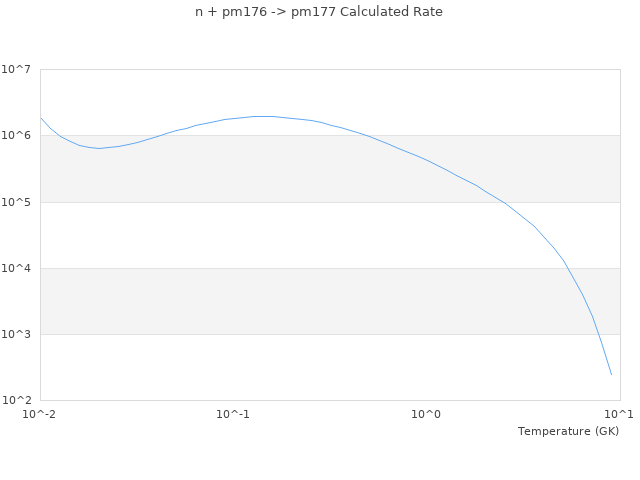

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
