Datapoints for he4 + nd188 -> p + pm191
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 9.639216e-247 |
| 0.4 | 5.916837e-184 |
| 0.5 | 1.005029e-147 |
| 0.6 | 2.089553e-124 |
| 0.7 | 3.205743e-108 |
| 0.8 | 2.468985e-96 |
| 0.9 | 3.269069e-87 |
| 1 | 5.842824e-80 |
| 1.5 | 7.749332e-58 |
| 2 | 9.610290e-46 |
| 2.5 | 1.178864e-37 |
| 3 | 9.210220e-32 |
| 3.5 | 2.650434e-27 |
| 4 | 7.199095e-24 |
| 4.5 | 3.358032e-21 |
| 5 | 4.122150e-19 |
| 6 | 3.940243e-16 |
| 7 | 4.472694e-14 |
| 8 | 2.430264e-12 |
| 9 | 1.804986e-10 |
| 10 | 4.144125e-08 |

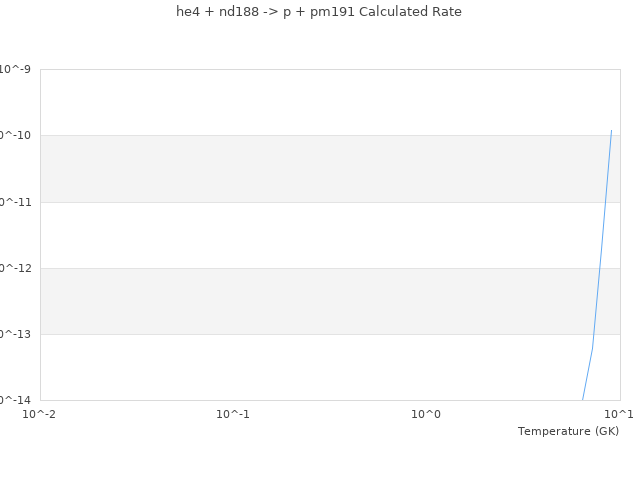

| View Graph | |
