Datapoints for p + pm196 -> sm197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.582745e-126 |
| 0.15 | 2.687795e-76 |
| 0.2 | 6.235502e-52 |
| 0.3 | 1.440940e-30 |
| 0.4 | 2.295816e-22 |
| 0.5 | 9.929963e-19 |
| 0.6 | 6.121043e-17 |
| 0.7 | 5.964419e-16 |
| 0.8 | 2.580218e-15 |
| 0.9 | 7.942130e-15 |
| 1 | 2.169433e-14 |
| 1.5 | 4.220286e-12 |
| 2 | 1.334545e-09 |
| 2.5 | 2.523803e-07 |
| 3 | 1.697213e-05 |
| 3.5 | 3.628739e-04 |
| 4 | 2.685802e-03 |
| 4.5 | 8.143728e-03 |
| 5 | 1.231497e-02 |
| 6 | 7.677645e-03 |
| 7 | 2.793801e-03 |
| 8 | 2.015369e-03 |
| 9 | 7.794987e-03 |
| 10 | 3.613969e-01 |

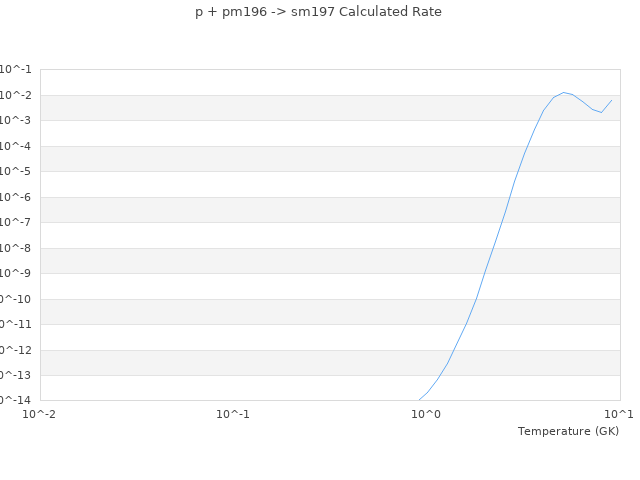

| View Graph | |
