Datapoints for he4 + nd196 -> p + pm199
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 4.415824e-217 |
| 0.4 | 9.038559e-162 |
| 0.5 | 7.087198e-130 |
| 0.6 | 2.057839e-109 |
| 0.7 | 2.821900e-95 |
| 0.8 | 5.942875e-85 |
| 0.9 | 4.451367e-77 |
| 1 | 7.436343e-71 |
| 1.5 | 4.082189e-52 |
| 2 | 5.764293e-42 |
| 2.5 | 4.137110e-35 |
| 3 | 5.222782e-30 |
| 3.5 | 4.841369e-26 |
| 4 | 6.869076e-23 |
| 4.5 | 2.347295e-20 |
| 5 | 2.655805e-18 |
| 6 | 3.115442e-15 |
| 7 | 4.793608e-13 |
| 8 | 2.778470e-11 |
| 9 | 1.360141e-09 |
| 10 | 1.064002e-07 |

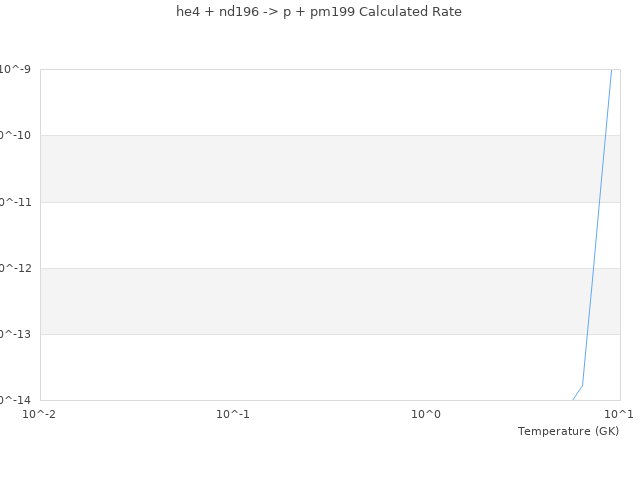

| View Graph | |
