Datapoints for he4 + nd200 -> p + pm203
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-319 |
| 0.3 | 8.444051e-209 |
| 0.4 | 3.084544e-155 |
| 0.5 | 2.075821e-124 |
| 0.6 | 1.140358e-104 |
| 0.7 | 4.665683e-91 |
| 0.8 | 3.907432e-81 |
| 0.9 | 1.412090e-73 |
| 1 | 1.304654e-67 |
| 1.5 | 1.123994e-49 |
| 2 | 5.827100e-40 |
| 2.5 | 2.176323e-33 |
| 3 | 1.708239e-28 |
| 3.5 | 1.092615e-24 |
| 4 | 1.144225e-21 |
| 4.5 | 3.025675e-19 |
| 5 | 2.744834e-17 |
| 6 | 2.243180e-14 |
| 7 | 2.615091e-12 |
| 8 | 1.231715e-10 |
| 9 | 5.221236e-09 |
| 10 | 3.757633e-07 |

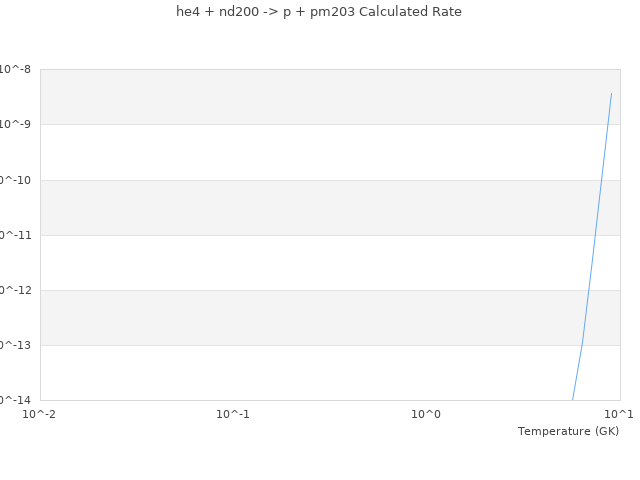

| View Graph | |
