Datapoints for he4 + nd133 -> n + sm136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 2.992274e-281 |
| 0.3 | 4.104915e-186 |
| 0.4 | 1.559513e-138 |
| 0.5 | 5.576018e-110 |
| 0.6 | 6.104586e-91 |
| 0.7 | 2.445933e-77 |
| 0.8 | 3.923819e-67 |
| 0.9 | 3.422522e-59 |
| 1 | 7.764719e-53 |
| 1.5 | 9.964738e-34 |
| 2 | 4.133583e-24 |
| 2.5 | 2.792954e-18 |
| 3 | 2.421279e-14 |
| 3.5 | 1.739396e-11 |
| 4 | 2.621897e-09 |
| 4.5 | 1.386332e-07 |
| 5 | 3.494694e-06 |
| 6 | 4.902348e-04 |
| 7 | 1.797748e-02 |
| 8 | 2.702581e-01 |
| 9 | 2.132876e+00 |
| 10 | 1.023597e+01 |

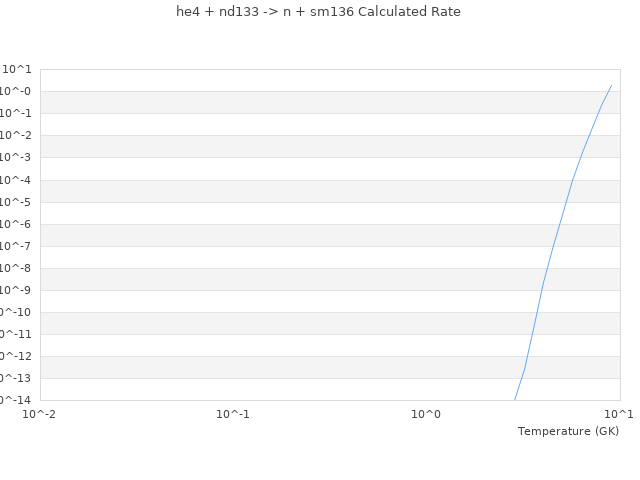

| View Graph | |
