Datapoints for p + sm168 -> eu169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.533635e-122 |
| 0.15 | 3.671272e-74 |
| 0.2 | 1.258060e-50 |
| 0.3 | 7.024490e-30 |
| 0.4 | 8.076125e-22 |
| 0.5 | 3.536768e-18 |
| 0.6 | 2.467091e-16 |
| 0.7 | 2.802693e-15 |
| 0.8 | 1.411381e-14 |
| 0.9 | 4.989686e-14 |
| 1 | 1.538723e-13 |
| 1.5 | 4.347602e-11 |
| 2 | 1.564616e-08 |
| 2.5 | 3.031729e-06 |
| 3 | 2.010917e-04 |
| 3.5 | 4.204910e-03 |
| 4 | 3.053720e-02 |
| 4.5 | 9.142421e-02 |
| 5 | 1.371997e-01 |
| 6 | 8.434715e-02 |
| 7 | 2.945814e-02 |
| 8 | 1.917988e-02 |
| 9 | 6.106465e-02 |
| 10 | 2.070665e+00 |

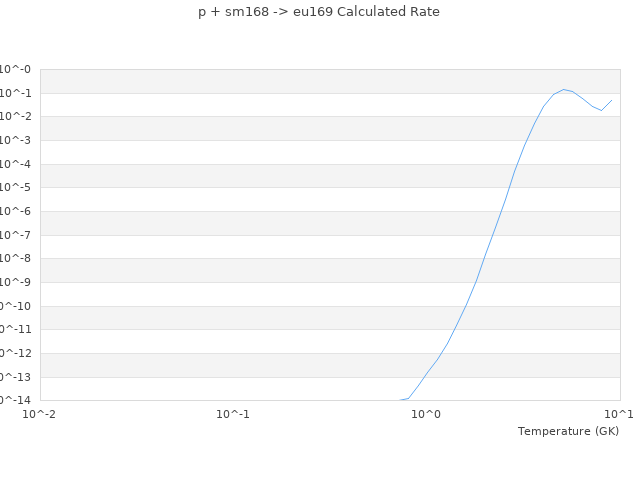

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
