Datapoints for n + gd174 -> he4 + sm171
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 5.990440e-263 |
| 0.2 | 1.625234e-203 |
| 0.3 | 3.526423e-139 |
| 0.4 | 4.548636e-105 |
| 0.5 | 4.568279e-84 |
| 0.6 | 6.412583e-70 |
| 0.7 | 8.645298e-60 |
| 0.8 | 3.322755e-52 |
| 0.9 | 2.511180e-46 |
| 1 | 1.211749e-41 |
| 1.5 | 1.091639e-27 |
| 2 | 1.228347e-20 |
| 2.5 | 3.221443e-16 |
| 3 | 4.457777e-13 |
| 3.5 | 1.152462e-10 |
| 4 | 1.015987e-08 |
| 4.5 | 4.217099e-07 |
| 5 | 9.969340e-06 |
| 6 | 1.611270e-03 |
| 7 | 7.799659e-02 |
| 8 | 1.582895e+00 |
| 9 | 1.680356e+01 |
| 10 | 1.096190e+02 |

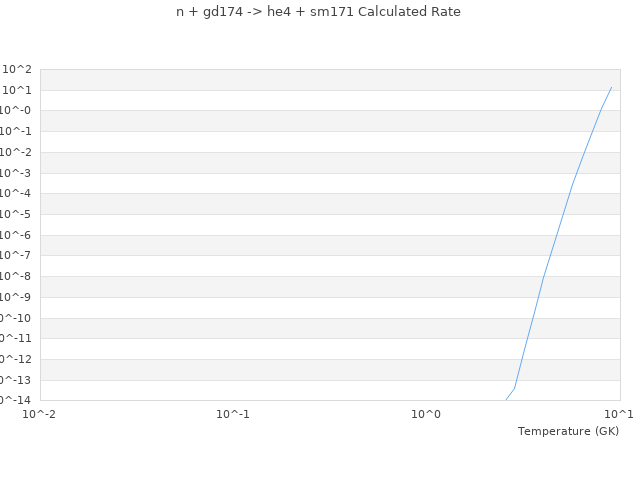

| View Graph | |
