Datapoints for n + gd177 -> he4 + sm174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.345242e-249 |
| 0.2 | 6.207449e-194 |
| 0.3 | 2.250765e-133 |
| 0.4 | 3.715190e-101 |
| 0.5 | 2.740030e-81 |
| 0.6 | 6.812723e-68 |
| 0.7 | 2.699884e-58 |
| 0.8 | 4.192881e-51 |
| 0.9 | 1.583806e-45 |
| 1 | 4.433228e-41 |
| 1.5 | 8.555452e-28 |
| 2 | 4.870859e-21 |
| 2.5 | 8.850123e-17 |
| 3 | 9.735376e-14 |
| 3.5 | 2.138129e-11 |
| 4 | 1.657131e-09 |
| 4.5 | 6.162420e-08 |
| 5 | 1.320194e-06 |
| 6 | 1.792261e-04 |
| 7 | 7.480782e-03 |
| 8 | 1.349170e-01 |
| 9 | 1.321074e+00 |
| 10 | 8.311456e+00 |

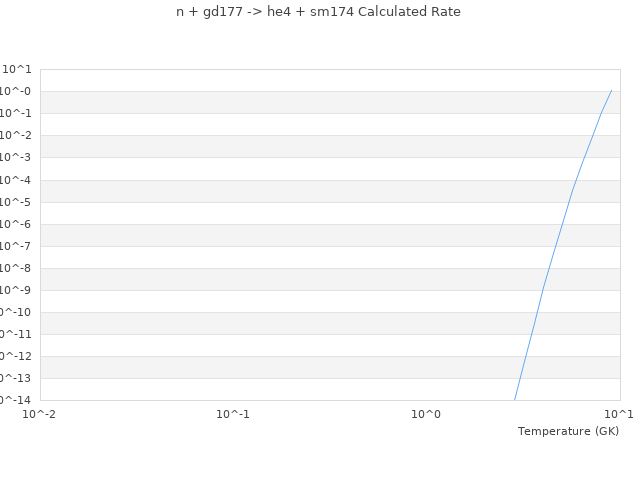

| View Graph | |
