Datapoints for p + sm196 -> eu197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.494100e-128 |
| 0.15 | 8.449146e-78 |
| 0.2 | 3.717169e-53 |
| 0.3 | 1.683202e-31 |
| 0.4 | 3.860380e-23 |
| 0.5 | 2.128998e-19 |
| 0.6 | 1.576421e-17 |
| 0.7 | 1.782839e-16 |
| 0.8 | 8.753906e-16 |
| 0.9 | 3.009939e-15 |
| 1 | 9.072310e-15 |
| 1.5 | 2.549141e-12 |
| 2 | 1.012648e-09 |
| 2.5 | 2.188347e-07 |
| 3 | 1.569383e-05 |
| 3.5 | 3.399947e-04 |
| 4 | 2.455616e-03 |
| 4.5 | 7.070976e-03 |
| 5 | 9.965078e-03 |
| 6 | 5.232665e-03 |
| 7 | 1.590168e-03 |
| 8 | 9.775679e-04 |
| 9 | 3.357367e-03 |
| 10 | 1.462663e-01 |

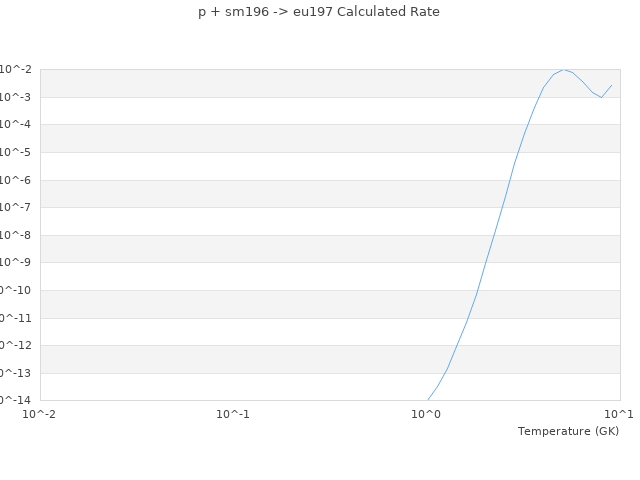

| View Graph | |
