Datapoints for he4 + pm193 -> p + sm196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-312 |
| 0.3 | 4.936128e-205 |
| 0.4 | 4.313304e-153 |
| 0.5 | 3.369837e-123 |
| 0.6 | 4.724689e-104 |
| 0.7 | 7.707759e-91 |
| 0.8 | 3.388035e-81 |
| 0.9 | 7.691047e-74 |
| 1 | 5.046284e-68 |
| 1.5 | 1.970767e-50 |
| 2 | 8.409654e-41 |
| 2.5 | 3.051592e-34 |
| 3 | 2.429389e-29 |
| 3.5 | 1.578652e-25 |
| 4 | 1.659021e-22 |
| 4.5 | 4.332801e-20 |
| 5 | 3.822980e-18 |
| 6 | 2.849370e-15 |
| 7 | 2.940347e-13 |
| 8 | 1.215249e-11 |
| 9 | 4.560879e-10 |
| 10 | 2.974044e-08 |

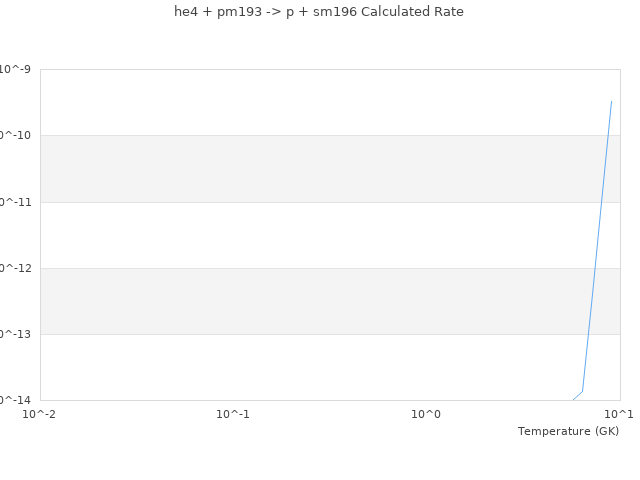

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
