Datapoints for he4 + sm196 -> gd200
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 6.847096e-230 |
| 0.2 | 2.019964e-180 |
| 0.3 | 9.408057e-126 |
| 0.4 | 2.374161e-96 |
| 0.5 | 3.852609e-78 |
| 0.6 | 7.517376e-66 |
| 0.7 | 4.709208e-57 |
| 0.8 | 1.769059e-50 |
| 0.9 | 2.134141e-45 |
| 1 | 2.311174e-41 |
| 1.5 | 1.771674e-29 |
| 2 | 1.285002e-23 |
| 2.5 | 4.921751e-20 |
| 3 | 1.504711e-17 |
| 3.5 | 1.089786e-15 |
| 4 | 3.116615e-14 |
| 4.5 | 4.612949e-13 |
| 5 | 4.138619e-12 |
| 6 | 1.073696e-10 |
| 7 | 8.914834e-10 |
| 8 | 3.137215e-09 |
| 9 | 5.652449e-09 |
| 10 | 6.003725e-09 |

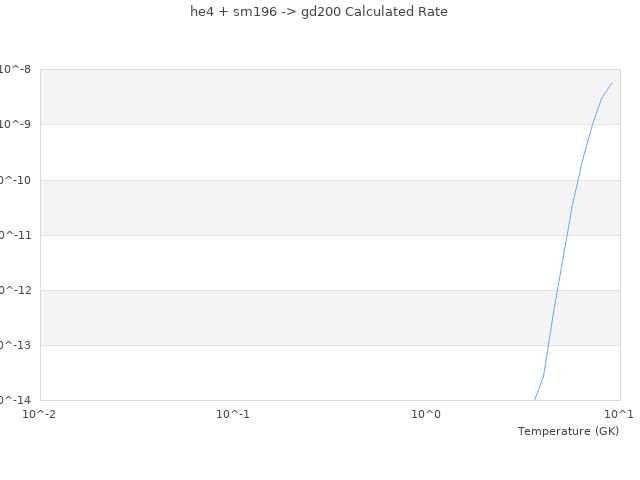

| View Graph | |
