Datapoints for he4 + sm197 -> gd201
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 5.292460e-230 |
| 0.2 | 1.847894e-180 |
| 0.3 | 1.127116e-125 |
| 0.4 | 3.411420e-96 |
| 0.5 | 6.235282e-78 |
| 0.6 | 1.312931e-65 |
| 0.7 | 8.618403e-57 |
| 0.8 | 3.323861e-50 |
| 0.9 | 4.057966e-45 |
| 1 | 4.402537e-41 |
| 1.5 | 3.170759e-29 |
| 2 | 2.105990e-23 |
| 2.5 | 7.525485e-20 |
| 3 | 2.206288e-17 |
| 3.5 | 1.573096e-15 |
| 4 | 4.528175e-14 |
| 4.5 | 6.864539e-13 |
| 5 | 6.389558e-12 |
| 6 | 1.825055e-10 |
| 7 | 1.681855e-09 |
| 8 | 6.485110e-09 |
| 9 | 1.243926e-08 |
| 10 | 1.349936e-08 |

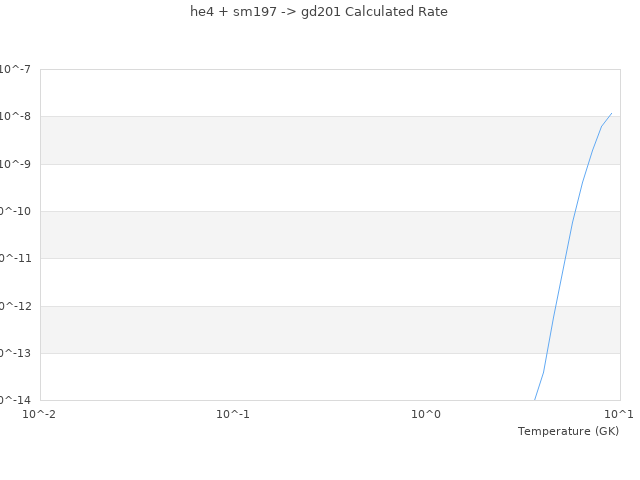

| View Graph | |
