Datapoints for n + gd206 -> he4 + sm203
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-319 |
| 0.4 | 2.809311e-239 |
| 0.5 | 6.526008e-191 |
| 0.6 | 1.607273e-158 |
| 0.7 | 2.276241e-135 |
| 0.8 | 4.948793e-118 |
| 0.9 | 1.394749e-104 |
| 1 | 7.456390e-94 |
| 1.5 | 6.943759e-62 |
| 2 | 6.061768e-46 |
| 2.5 | 2.976698e-36 |
| 3 | 1.255073e-29 |
| 3.5 | 9.659247e-25 |
| 4 | 6.020189e-21 |
| 4.5 | 6.836203e-18 |
| 5 | 2.285229e-15 |
| 6 | 1.982914e-11 |
| 7 | 1.660668e-08 |
| 8 | 2.826937e-06 |
| 9 | 1.520175e-04 |
| 10 | 3.446028e-03 |

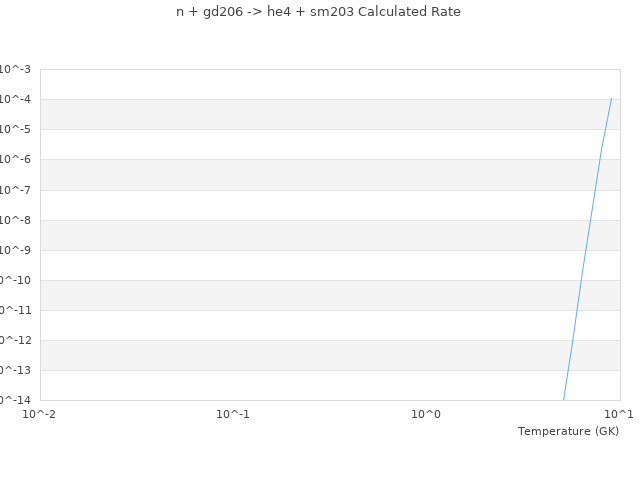

| View Graph | |
