Datapoints for he4 + sm205 -> gd209
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-321 |
| 0.15 | 4.654258e-233 |
| 0.2 | 8.747723e-183 |
| 0.3 | 2.723291e-127 |
| 0.4 | 1.753323e-97 |
| 0.5 | 4.912140e-79 |
| 0.6 | 1.368930e-66 |
| 0.7 | 1.104763e-57 |
| 0.8 | 5.031443e-51 |
| 0.9 | 7.084287e-46 |
| 1 | 8.733187e-42 |
| 1.5 | 1.067344e-29 |
| 2 | 1.085269e-23 |
| 2.5 | 5.479797e-20 |
| 3 | 2.111765e-17 |
| 3.5 | 1.856436e-15 |
| 4 | 6.234304e-14 |
| 4.5 | 1.052295e-12 |
| 5 | 1.049153e-11 |
| 6 | 3.148293e-10 |
| 7 | 2.819502e-09 |
| 8 | 1.015745e-08 |
| 9 | 1.804115e-08 |
| 10 | 1.840883e-08 |

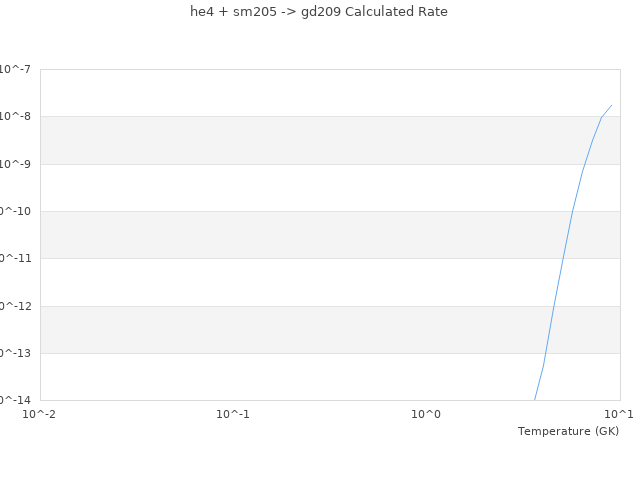

| View Graph | |
