Datapoints for he4 + sm206 -> n + gd209
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-315 |
| 0.15 | 2.417032e-227 |
| 0.2 | 4.984459e-177 |
| 0.3 | 1.884431e-121 |
| 0.4 | 1.413692e-91 |
| 0.5 | 4.429237e-73 |
| 0.6 | 1.338474e-60 |
| 0.7 | 1.145861e-51 |
| 0.8 | 5.451521e-45 |
| 0.9 | 7.933807e-40 |
| 1 | 1.003723e-35 |
| 1.5 | 1.343459e-23 |
| 2 | 1.523565e-17 |
| 2.5 | 9.100646e-14 |
| 3 | 4.437664e-11 |
| 3.5 | 5.272851e-09 |
| 4 | 2.545719e-07 |
| 4.5 | 6.538092e-06 |
| 5 | 1.044603e-04 |
| 6 | 9.239362e-03 |
| 7 | 2.858428e-01 |
| 8 | 4.068108e+00 |
| 9 | 3.201196e+01 |
| 10 | 1.597694e+02 |

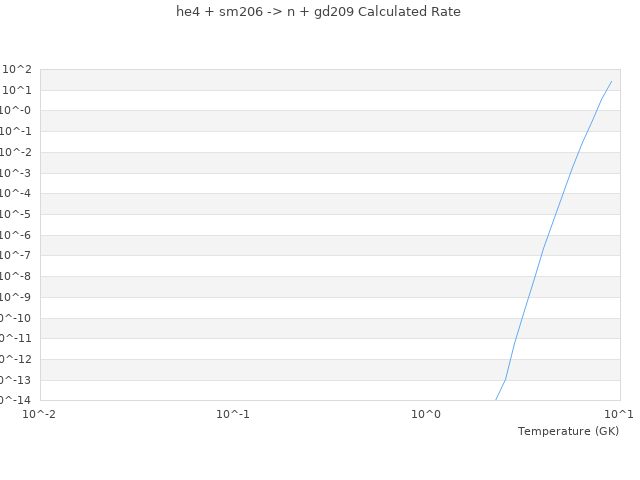

| View Graph | |
