Datapoints for n + eu176 -> eu177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.027994e+07 |
| 0.15 | 1.201393e+07 |
| 0.2 | 1.193629e+07 |
| 0.3 | 1.014320e+07 |
| 0.4 | 8.220828e+06 |
| 0.5 | 6.678148e+06 |
| 0.6 | 5.499065e+06 |
| 0.7 | 4.597756e+06 |
| 0.8 | 3.899393e+06 |
| 0.9 | 3.349041e+06 |
| 1 | 2.907885e+06 |
| 1.5 | 1.611805e+06 |
| 2 | 1.000796e+06 |
| 2.5 | 6.549219e+05 |
| 3 | 4.380881e+05 |
| 3.5 | 2.945526e+05 |
| 4 | 1.971067e+05 |
| 4.5 | 1.304751e+05 |
| 5 | 8.510423e+04 |
| 6 | 3.432056e+04 |
| 7 | 1.277844e+04 |
| 8 | 4.371237e+03 |
| 9 | 1.371528e+03 |
| 10 | 3.946844e+02 |

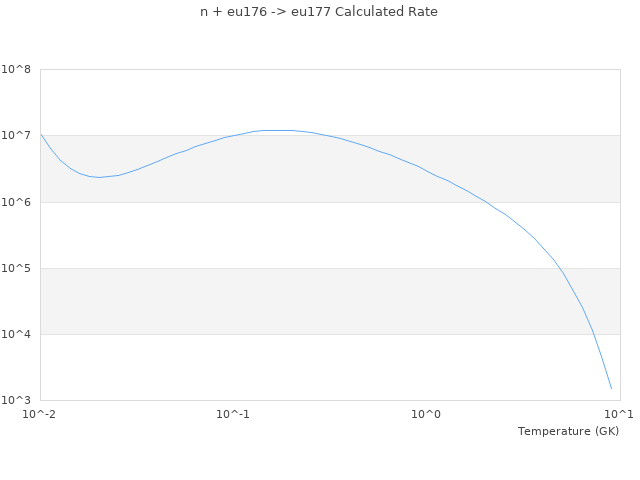

| View Graph | |
