Datapoints for p + eu176 -> gd177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.359730e-125 |
| 0.15 | 2.332765e-75 |
| 0.2 | 2.921587e-51 |
| 0.3 | 4.230882e-30 |
| 0.4 | 6.016259e-22 |
| 0.5 | 2.601508e-18 |
| 0.6 | 1.668657e-16 |
| 0.7 | 1.714083e-15 |
| 0.8 | 7.834229e-15 |
| 0.9 | 2.542033e-14 |
| 1 | 7.291033e-14 |
| 1.5 | 1.702645e-11 |
| 2 | 6.027804e-09 |
| 2.5 | 1.234447e-06 |
| 3 | 8.860629e-05 |
| 3.5 | 2.010511e-03 |
| 4 | 1.576060e-02 |
| 4.5 | 5.057343e-02 |
| 5 | 8.086593e-02 |
| 6 | 5.605672e-02 |
| 7 | 2.235895e-02 |
| 8 | 1.727815e-02 |
| 9 | 6.941430e-02 |
| 10 | 3.219304e+00 |

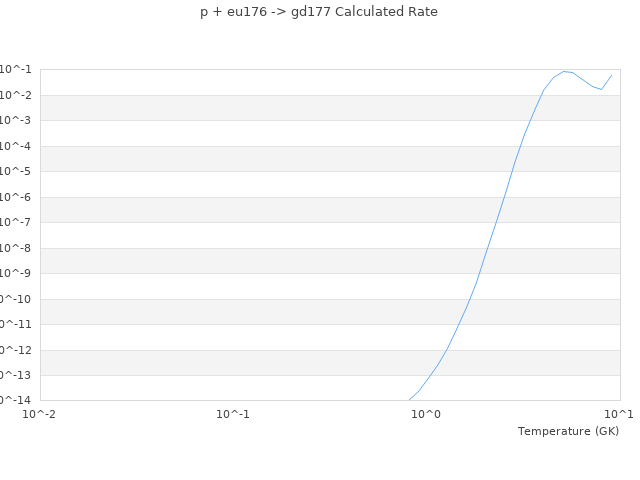

| View Graph | |
