Datapoints for p + eu177 -> he4 + sm174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.047745e-186 |
| 0.15 | 1.843517e-119 |
| 0.2 | 8.839186e-85 |
| 0.3 | 7.226320e-52 |
| 0.4 | 1.186819e-37 |
| 0.5 | 1.544838e-30 |
| 0.6 | 1.304350e-26 |
| 0.7 | 2.911215e-24 |
| 0.8 | 9.622362e-23 |
| 0.9 | 1.122129e-21 |
| 1 | 7.328777e-21 |
| 1.5 | 5.451335e-18 |
| 2 | 1.867327e-15 |
| 2.5 | 4.708959e-13 |
| 3 | 6.475029e-11 |
| 3.5 | 4.140569e-09 |
| 4 | 1.210760e-07 |
| 4.5 | 1.728770e-06 |
| 5 | 1.340820e-05 |
| 6 | 2.126545e-04 |
| 7 | 1.307750e-03 |
| 8 | 7.733588e-03 |
| 9 | 9.573962e-02 |
| 10 | 4.763998e+00 |

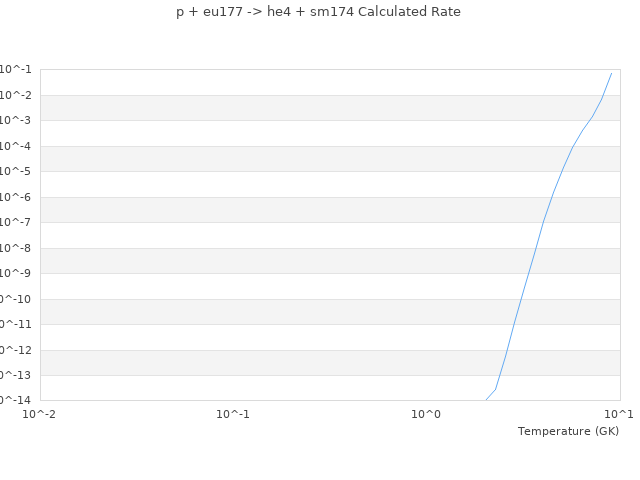

| View Graph | |
